EcoFlow DELTA Pro Ultra X: All Features Explained

Power your entire home with 12 kilowatt from a single unit. Set up in just seven days.

Table of Contents

• Why a single energy hub changes home backup
• What’s in the system and how it connects
• Charging options and speed
• Whole-home control without rewiring
• Fast, professional install
• Smart features that reduce bills and manage storms
• Safety and durability
• Scale and accessory ecosystem
• Who should consider this system
• How much power and capacity can one system provide?
• Final thought

Why a single energy hub changes home backup

A home energy system should be simple to install, flexible to scale, and reliable when it matters most. The EcoFlow DELTA Pro Ultra X is designed as a single, modular energy hub that delivers up to 12 kilowatt split phase output from one inverter paired with batteries. For many households that means refrigerators, dryers, central air, and other major loads run through a neat, compact system without rewiring every circuit or running extension cords.

What’s in the system and how it connects

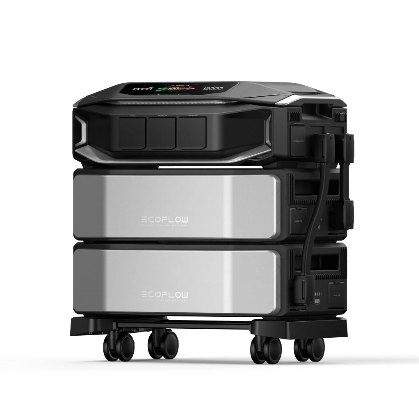

The inverter is the command center. On the front, a clear display reports battery percentage, runtime, input and output power, and operating mode. Physical outputs include four AC sockets that cover 120 volt and 240 volt loads (240 volt at 50 amp, 30 amp, and 20 amp) with only a 10 millisecond downtime on switching.

The plug and play setup is straightforward. The 6 kWh battery packs stack and connect to the inverter with dedicated cables and locking clips. Pair one inverter with two 6 kWh batteries for the full 12 kW output and 12 kWh capacity. More ambitious setups allow stacking up to 10 batteries per inverter and linking up to three inverters for up to 36 kW output and 180 kWh capacity.

Charging options and speed

• AC grid input: up to 12 kW, capable of recharging in as little as one hour.
• Generator support: accepts a 12 kW generator and can use the Flow Master Generator rectifier to sustain full power for long outages.
• Solar input: dual MPPT ports supporting up to 500 volt 10 kW total (5 kW per MPPT) for efficient solar harvesting.
• Surge handling: peak surge capacity up to 45 kW for starting motors and compressors.

Whole-home control without rewiring

Instead of moving loads with messy extension cords, the DELTA Pro Ultra X integrates with home-level control hardware. Two main options let you choose the level of control you need.

Smart Home Panel 3

A full replacement for your electrical panel that supports up to 32 circuits and 200 amp service. It gives precise control over every circuit from Wi Fi routers to water pumps so you can prioritize what stays on during an outage.

Smart Gateway

Acts like an automated transfer switch that keeps essentials powered and can auto-cut nonessential circuits to stretch backup time. It includes a 200 amp relay plus six smart circuit auto cut channels for prioritized runtime.

Fast, professional install

One of the biggest barriers to whole home backup is installation time. The component design and plug and play battery stacks allow a full install in about seven days, reportedly around 80 percent faster than traditional home battery installation cycles. For hands-off convenience, certified electricians can handle deployment and app setup through nationwide pro installation.

Smart features that reduce bills and manage storms

The system integrates with the EcoFlow app to analyze usage and recommend ways to save energy. Notable modes and features include:

• Self-powered mode: solar by day, battery by night to maximize solar use.
• POU mode: predicts usage with high accuracy to cut point of use costs and schedule charging during off-peak hours.
• WeatherVit integration: receives 12 hour storm alerts and can auto-recharge batteries ahead of incoming bad weather.
• Voice and Power Insight: voice control and personalized tips through Power Insight 2 improve day to day energy management.

With intelligent scheduling and load prioritization, systems like this can often recover the cost of installation through energy savings in a few years depending on local electricity prices and usage patterns.

Safety and durability

The Ultra X uses EV grade full tab LFP cells with lower internal resistance, less self heating, and longer lifecycle stability. Dual battery management systems, local and cloud XGuard monitoring, and a three level safety architecture deliver real time checks and remote support. Thermal and environmental upgrades mean batteries can self heat down to minus 4 degrees Fahrenheit and operate reliably into 122 degrees Fahrenheit with improved cooling.

Scale and accessory ecosystem

The modular approach means you can start with a single inverter plus batteries and expand later. Useful accessories and companion hardware include inverter bundles, double voltage hubs for linking units, solar panels, and generator interfaces.

If you want to pair with a conventional generator rather than inverter generators, there are a variety of robust options such as high output portable generators that can be used as the backup charging source. Examples on the market include larger portable dual fuel units and heavy duty gasoline models suitable for sustained recharging.

Relevant product pages and compatible hardware resources:

• EcoFlow DELTA Pro Ultra inverter product page: https://mightygenerators.com/products/ecoflow-delta-pro-ultra-single-inverter
• EcoFlow DELTA Pro Ultra battery pack: https://mightygenerators.com/products/ecoflow-delta-pro-ultra-battery-pack
• EcoFlow DELTA Pro whole home backup kit: https://mightygenerators.com/products/ecoflow-delta-pro-ultra-whole-home-backup-power
• EcoFlow DELTA Pro portable power station: https://mightygenerators.com/products/ecoflow-delta-pro-portable-power-station
• Double Voltage Hub home backup kit (for linking DELTA units): https://mightygenerators.com/products/ecoflow-delta-pro-x-2-double-voltage-hub-home-backup-kit
• High output portable generator options for onsite charging, e.g. Pulsar PG6000R: https://mightygenerators.com/products/pulsar-pg6000r-6-000w-portable-gas-powered-carb-approved-generator-with-wheel-kit
• For extremely high continuous generator support consider larger units like the Pulsar PG15KVTWB 15,000 watt dual fuel: https://mightygenerators.com/products/pulsar-pg15kvtwb-15-000-watt-dual-fuel-portable-generator-with-electric-start-carb-compliant
• Complete off grid solar kits if you plan a ground or wall mounted array: https://mightygenerators.com/products/rich-solar-complete-off-grid-solar-kit-13-000w-120-240v-output-48vdc

Who should consider this system

The DELTA Pro Ultra X fits homeowners who want reliable, scalable whole home backup without a long, invasive installation. It is a strong choice for:

• Homes with frequent outages that need seamless transition and high surge capacity.
• Owners who want to prioritize smart energy use, time shifting, and solar integration.
• People planning to reduce grid dependence or transition to partial off grid living.

How much power and capacity can one system provide?

A single inverter paired with two 6 kWh batteries supplies 12 kW split phase output and 12 kWh capacity. Systems can expand to 10 batteries per inverter and up to three inverters for a combined 36 kW output and 180 kWh capacity.

How fast does it switch to battery when the grid fails?

The system switches from grid to battery within about 20 milliseconds, ensuring minimal interruption to sensitive electronics.

Can I use a gas or propane generator with it?

Yes. The inverter supports connection to a 12 kW generator and can use the Flow Master Generator rectifier for stable, long duration generator charging. Many users pair robust portable or standby generators for redundancy.

Does it require rooftop solar?

No. The system works with rooftop, ground mounted, or wall mounted solar arrays. Solar is optional; AC and generator charging are fully supported.

What safety protections are included?

Safety features include EV grade full tab LFP cells, dual BMS, local and cloud XGuard monitoring with 100 plus checks, and a three level safety architecture that covers power protection, connection monitoring, and load isolation.

Final thought

A modern whole home backup should be fast to install, simple to scale, and smart enough to both protect the household and optimize energy costs. The DELTA Pro Ultra X combines high power, rapid charging, solar compatibility, and layered safety into a platform that grows as needs change. Whether the goal is to keep the lights on through a storm, reduce bills with intelligent scheduling, or build a robust off grid system, this approach makes whole home backup feel manageable and future ready.
